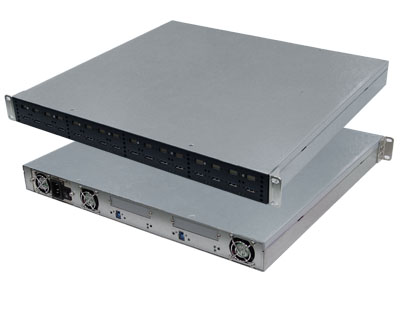

Dual USB 3.0 8-port Hubs support the most common USB charging protocols

DU3-32U3BC01-16

Dual USB 3.0 8-port Hubs support the most common USB charging protocols

• The size of 1U 19-inch rack mount chassis
• Designed with USB 3.0 Compliant Hub Controller, TID# 330000003
• Multiple transaction translator (MTT) Hub
  • One TT per downstream port for maximum performance
• Two USB 3.0 Upstream Ports and 16 USB 3.0 Down Stream Ports
• Supports Spread Spectrum Clock (SSC)
• Built-in 350W AC (100-240V, 50-60Hz) to DC Switching Power Adapter. (PS-00044)
• Provides USB 3.0 cable port lock mechanism
  • Upstream USB 3.0 cable port (Standard B-type Receptacle) lock mechanism
  • Downstream USB 3.0 cable port (Standard A-type Receptacle) lock mechanism
• Provides multiple modes of charging to meet the following specifications:
  • USB Battery Charging Specification BC1.2
  • Chinese Telecommunications Industry Standard YD/T 1591-2009
  • Divider Modes 2.0V/2.7V and 2.7V/2.0V compliant with 1A and 2A Apple mobile digital devices such as iPod®, iPhone® (1A) and iPad® (2A)
  • Galaxy Tab Charging Mode (U3H416 Rev. 1.1)
• CDP/SDP Auto Switch (U3H416 Rev. 1.1)
  • Some popular phone models are not compliant to the BC1.2 specification and fail to establish a data connection.
    • These phones use primary detection to only identify ports as SDP (data / no charge) or DCP (no data / charge). They do not recognize CDP (data /charge) ports.
    • When connected to a CDP port, these phones classify the port as a DCP and will only charge. Since charging ports are configured as CDP when the computer is in S0, users do not get the expected data connection.
• Automatic Selection of D+/D- Mode for an Attached Device
