External PCIe x4 to PCIe x8 (x4 mode) Slot Docking Enclosure

  • PCIe x8 Slot Supports Four PCI Express Lanes Bandwidth
  • Support Half-Size PCIe x4/x8 Add-in-Card
  • Quad-lane External PCIe Connector (38pin iPass™)
  • Single DC 12V Input
  • No Power Switch (Power On/Off Control by PCIe Cable Adapter automatically)
  • Provide Power indicator LEDs for power and 3.3Vaux
  • Provide two Ear Brackets for different ways of fixed support

EPCIEX4D01E is an external PCIe x4 to PCIe x8 (x4 mode) Slot Docking Enclosure. The EPCIEX4D01E expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of remote PCIe device.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the EPCIEX4D01E can be quickly and easily set up for multi-I/O, high throughput, or hazardous applications.

In particularly rugged environments, your desktop computer can be placed at a secure location up to 7 meters (for PCIe Gen 1.0) or 100 meters (with PCIe A.O.C) away. High performance and reliable communication is maintained with the well-shielded extension cable or A.O.C (Active Optical Cable), and the docking station is designed to withstand high or low temperatures, vibrations and shocks. In addition, the isolation between core components and docked PCIe devices eliminates any possible electromagnetic interference between them.

This Application includes a PCIe Cable Adapter Card, a robust Docking Enclosure (EPCIEX4D01), and a PCIe Cable. The PCIe Cable Adapter Card fits into a PCIe slot (x4, x8 or x16) in the host computer and communicates to PCIe x4 device installed in the docking station.

Application 1:
For PCIe Copper Cable

Application 2:
For PCIe Active Optical Cable (AOC)

If you need more USB ports for long distances, you can install USB 3.0 host card on the EPCIEX4D01E and it can be placed up to 100 meters by PCIe AOC.


USB 3.1 to PCI Express x4 (x2 mode) Host Card

U3-PCIE2XG221 is a 2-port USB 3.1 to PCI Express x4 (x2 mode) Gen 2 Host Card.

2-port USB 3.1 to PCI EXpress x4 Host Card
USB 3.1 Host Card
The U3-PCIE2XG221 is an Universal Serial Bus 3.1 host controller, compliant with Intel eXtensible Hot Controller Interface specification revision 1.1, bridging PCI Express interface to two ports of USB3.1, up to 10Gbps high speed bandwidth, backward compatible with legacy USB function and devices. It can configure as PCIe x2 Gen2 or x1 Gen3, compliant with UASP (USB Attach SCSI Protocol) Revision 1.0, supporting the XHCI debug capability.
The design supplies normal core power and suspend core power, supporting the driver on Windows 7, Windows 8.0, Windows 8.1 and various Linux Kernels.

more info: http://www.ioi.com.tw/products/proddetail.aspx?CatID=106&DeviceID=3029&HostID=2070&ProdID=1060193


10Gb/s SFP+ Ethernet to PCI Express x4 Host Card

10 Gigabit Ethernet SFP+ to PCI EXpress x4 Gen2 Host Card
SFP+ 10Gb Ethernet to PCIe x4 Host Card
SFP10G-PCIE4XG201 is 10 Gigabit Ethernet SFP+ to PCI Express x4 Gen 2 Host Card .
The SFP10G-PCIE4XG201 complies with common 10GbE SFP+ optical & Direct Attached Copper modules.
With only 4.12 Watts maximum power consumption (including the optical module in full duplex), the SFP10G-PCIE4XG201 offers the lowest power consumption and the best cost solution in the market today.
Targeted at high-end Workstations and low cost Application Servers, which seek to service the increasing demand of higher network bandwidth, while maintaining low power and cost budgets.


1394b Active Cable & 1394b Long Hual Cable

1394b Long-Haul Active Cable (20/40m) Beta 9 pin plug to Beta 9 pin plug with Jackscrew on both Ends (CB-00539)

1394 long hual cable -- 1394b active cable - beta to beta
1394b active cable

 The 1394b Long-Haul Active Cable (CB-00539) integrated two coax transceivers and is designed to simultaneously transmit and receive signals on a single 75Ω coax cable, extending your signal an additional 20 or 40 meters. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.
The 1394b Long-Haul Active Cable (CB-00539) is ideally suited for IEEE 1394b-2002 connections over 75Ω coax cable at S800 data rate as specified in the 1394 TA Baseband Coax PMD Specification. It can also be used at S400, S200 and S100 data rates. The 1394b Active Cable connects seamlessly to any IEEE 1394b-2002 compliant physical layer controller (PHY). For correct operation the signals must be NRZ (non-return-to-zero) encoded, DC balanced with a maximum run length of 10 bits, and have a speed (edge rate) of between 100Mbps and 1.25Gbps.
This 1394b Long-Haul Active Cable (CB-00539) is useful and economical solution for the Machine Vision, Surveillance and FireWire Storage market.

more information: http://www.ioi.com.tw/products/proddetail.aspx?CatID=102&HostID=2009&Cable_HostID=4004&ProdID=1020110

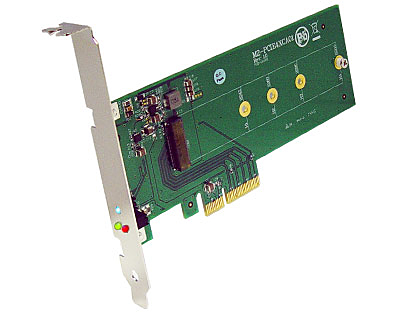

PCIe M.2 to PCIe x4 adapter

PCIe M.2 to PCI Express x4 adapter
M.2 (NGFF) to PCIe x4 adapter

• Upstream: 4-lane PCI Express
• Downstream: PCIe M.2 (NGFF) Socket 3 (67pin with M key) connector
• Supports the following type M.2 (NGFF) PCIe SSD :
   ◦ Type 2242: 42mm(L) x 22mm(W)
   ◦ Type 2260: 60mm(L) x 22mm(W)
   ◦ Type 2280: 80mm(L) x 22mm(W)
   ◦ Type 22110: 110mm(L) x 22mm(W)
• Low Profile PCI Form Factor

more information : M2-PCIE4XCA01


Four downstream ports USB 3.0 HUB (3.5" FDD Form Factor) w/USB Battery Charging Specification Revision 1.2 for Charging Downstream Ports (CDP).


Four downstream ports USB 3.0 HUB (3.5" FDD Form Factor)

  • USB 3.0 Compliant Hub, TID# 330000003
  • Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
  • Supports Spread Spectrum Clock (SSC)
  • Multi Transaction Translator (MTT) Hub: Four Transaction Translators, One Per Port
  • 3.5" FDD Form Factor
  • Provides USB 3.0 cable port lock mechanism
    • One upstream USB 3.0 cable port (Standard B-type Receptacle) lock mechanism
    • Four downstream USB 3.0 cable ports (Standard A-type Receptacle) lock mechanism
  • Supports USB Battery Charging Specification Revision 1.2 for Charging Downstream Ports (CDP).
  • Dual USB 3.0 8-port Hubs support the most common USB charging protocols


    Dual USB 3.0 8-port Hubs support the most common USB charging protocols

    Dual USB 3.0 8-port Hub
    • The size of 1U 19-inch rack mount chassis
    • Designed with USB 3.0 Compliant Hub Controller, TID# 330000003
    • Multiple transaction translator (MTT) Hub
      • One TT per downstream port for maximum performance
    • Two USB 3.0 Upstream Ports and 16 USB 3.0 Down Stream Ports
    • Supports Spread Spectrum Clock (SSC)
    • Built-in 350W AC (100-240V, 50-60Hz) to DC Switching Power Adapter. (PS-00044)
    • Provides USB 3.0 cable port lock mechanism
      • Upstream USB 3.0 cable port (Standard B-type Receptacle) lock mechanism
      • Downstream USB 3.0 cable port (Standard A-type Receptacle) lock mechanism
    • Provides multiple modes of charging to meet the following specifications:
      • USB Battery Charging Specification BC1.2
      • Chinese Telecommunications Industry Standard YD/T 1591-2009
      • Divider Modes 2.0V/2.7V and 2.7V/2.0V compliant with 1A and 2A Apple mobile digital devices such as iPod®, iPhone® (1A) and iPad® (2A)
      • Galaxy Tab Charging Mode (U3H416 Rev. 1.1)
    • CDP/SDP Auto Switch (U3H416 Rev. 1.1)
      • Some popular phone models are not compliant to the BC1.2 specification and fail to establish a data connection.
        • These phones use primary detection to only identify ports as SDP (data / no charge) or DCP (no data / charge). They do not recognize CDP (data /charge) ports.
        • When connected to a CDP port, these phones classify the port as a DCP and will only charge. Since charging ports are configured as CDP when the computer is in S0, users do not get the expected data connection.
    • Automatic Selection of D+/D- Mode for an Attached Device
